Shibuya Ultima CPX II Carbon Sight 365/9*
- AUD$502.12
- AUD$456.48
- In Stock
- Shibuya Ultima CPX II Carbon Sight 365/9*
Available Options:

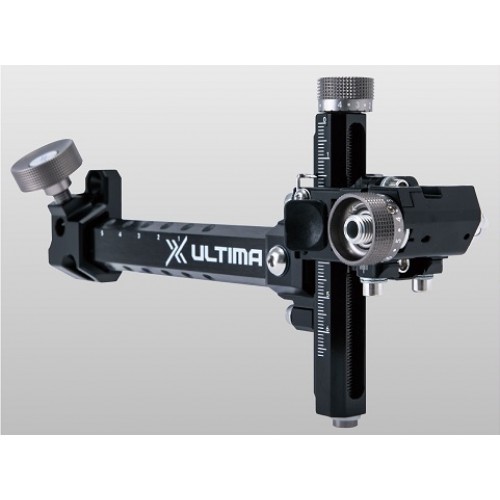

Shibuya Ultima CPX II Carbon Sight 365/9*
Shibuya Ultima 2 Series
The Latest Compound sight from Shibuya Archery
** 365 Vertical / 9" Extension **
Smooth and reliable adjustments Light but incredibly sturdy
The Choice of top shooters worldwide!
NEW!
ZPE SYSTEM【Patent pending】
ULTIMA CPXII sights feature a revolutionary system eliminating backlash and play in the elevation adjustments: the ZPE system. A re-adjustable aluminum wedge, secured with Nord-Lock® washers, eliminates any gap between the threaded locking block and aperture block.NEW!
OPTIMIZED INDICATOR PINS
The new flat-shelf indicator pin on ULTIMA CPXII sights is easy to adjust, closer to the sight tape surface than ever before, while still offering enough clearance for layered tapes. Both side pins are locked by a cap screw from the side, preventing accidental movements when locking them down!TRIA-LOCK SYSTEM
Shibuya's innovative Tria-Lock system keeps the scope rod approx. 1/2" closer to the elevation bar than conventional target sights. This significantly reduces moment effected on the windage unit – a significant factor in development of play and faults!X-Lock System US Pat No. 7,287,335
Re-adjustable, zero-tolerance fit between the windage unit and sight frame. Super-slick and durable polyacetal resin guide spacers enclose the elevation rail, re-adjustable at the turn of a set screw. All parts field-adjustable and -replaceable!
| Elevation Type | 365 | 485 | |||||
|---|---|---|---|---|---|---|---|
| Extension Type | 6"Carbon | 9"Carbon | 6"Carbon | 9"Carbon | |||
| Mass Weight | 199g | 217g | 207g | 226g | |||
| Aperture Distance （APD） | MAX 180mm MIN 92mm | MAX 257mm MIN 92mm | MAX 180mm MIN 92mm | MAX 257mm MIN 92mm | |||
| Elevation | Adjustment Model | Screw Drive with No-Lock Quick Adjust Function | |||||
| Length | 93mm (approx.3.65"） | 123mm (approx.4.8"） | |||||
| Adjustable Range | approx.67mm | approx.97mm | |||||
| Adjustment Increments | 1/24" per revolution （approx.1mm） | ||||||
| 1/480" per click （approx.0.05mm） | |||||||
| Tilt Adjustment | adjustable | ||||||
| Windage | Adjustable Range | approx.10mm | |||||
| Adjustment Increments | 1/24" per revolution （approx.1mm） | ||||||
| 1/480" per click （approx.0.05mm） | |||||||
| Compatible Scopes | No.10-32 threaded scope rods | ||||||
| 2nd、3rd Axis | adjustable | ||||||
| Extension | Length | 157mm (approx.6"） | 233mm (approx.9"） | 157mm (approx.6"） | 233mm (approx.9"） | ||
| Adjustable Range | 3.5" (approx.89mm） | 6.5" (approx.165mm） | 3.5" (approx.89mm） | 6.5" (approx.165mm） | |||
| Adjustment Increments | 1/2" (approx.12.7mm） | 1/2" (approx.12.7mm） | 1/2" (approx.12.7mm） | 1/2" (approx.12.7mm） | |||
| Material | Elevation | 6000 series aluminum alloy | |||||
| Windage Unit | 6000 series aluminum alloy | ||||||
| Extension | Carbon Fiber | ||||||
| Colors | Black, Silver, Blue, Red, Gold, Pink, Green, Orange | Black, Silver | |||||
| RH/LH | available | ||||||
| Release Date | 2019 | ||||||
| Included Accessories | Soft Sight Case Offset Bracket No.10-24 mount screws No.10-32 hex nut, adjustment washers Hex Wrenches 1.5mm／2mm／3mm | ||||||
| Instructions Sheet Warranty card | |||||||
